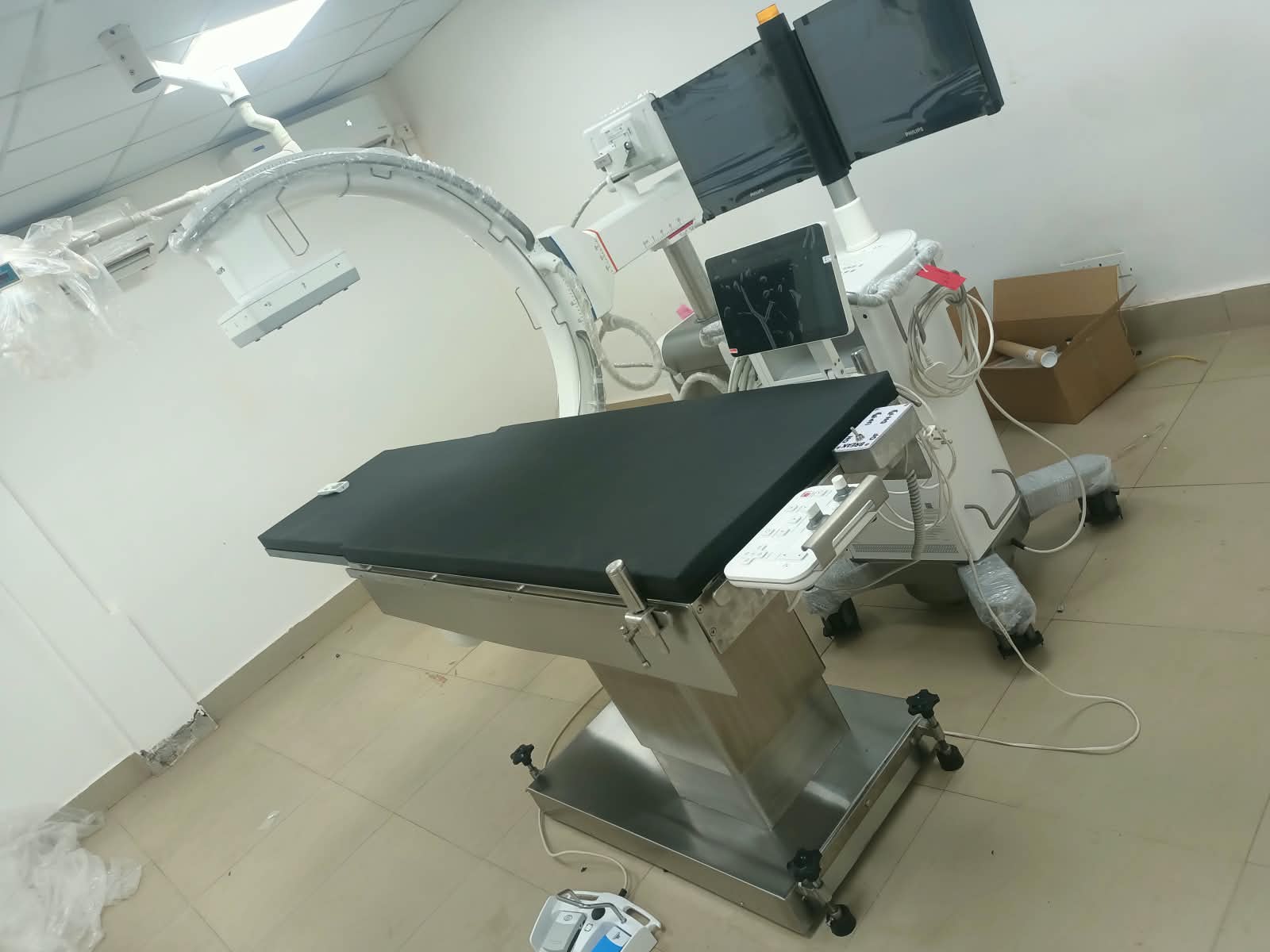

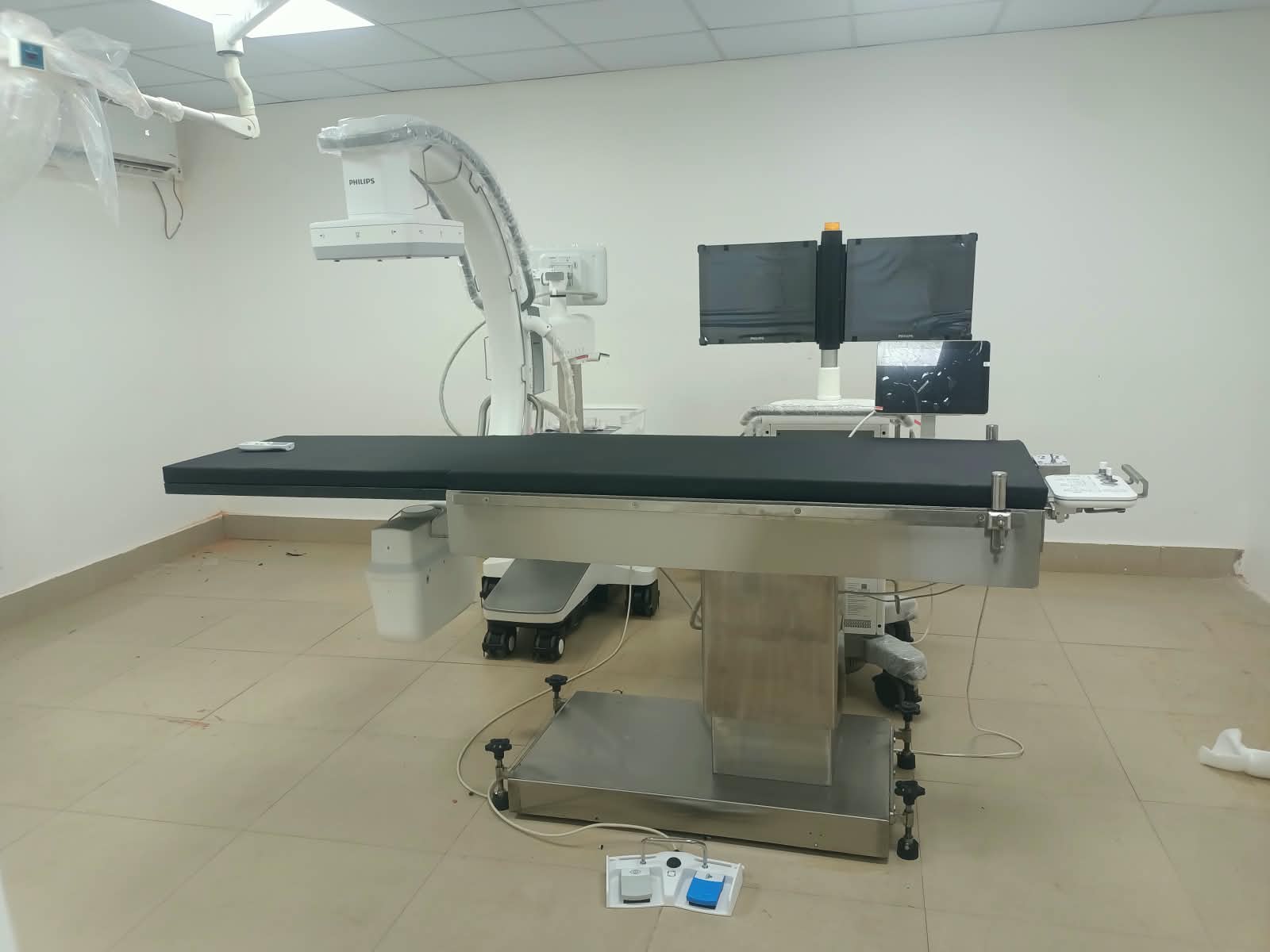

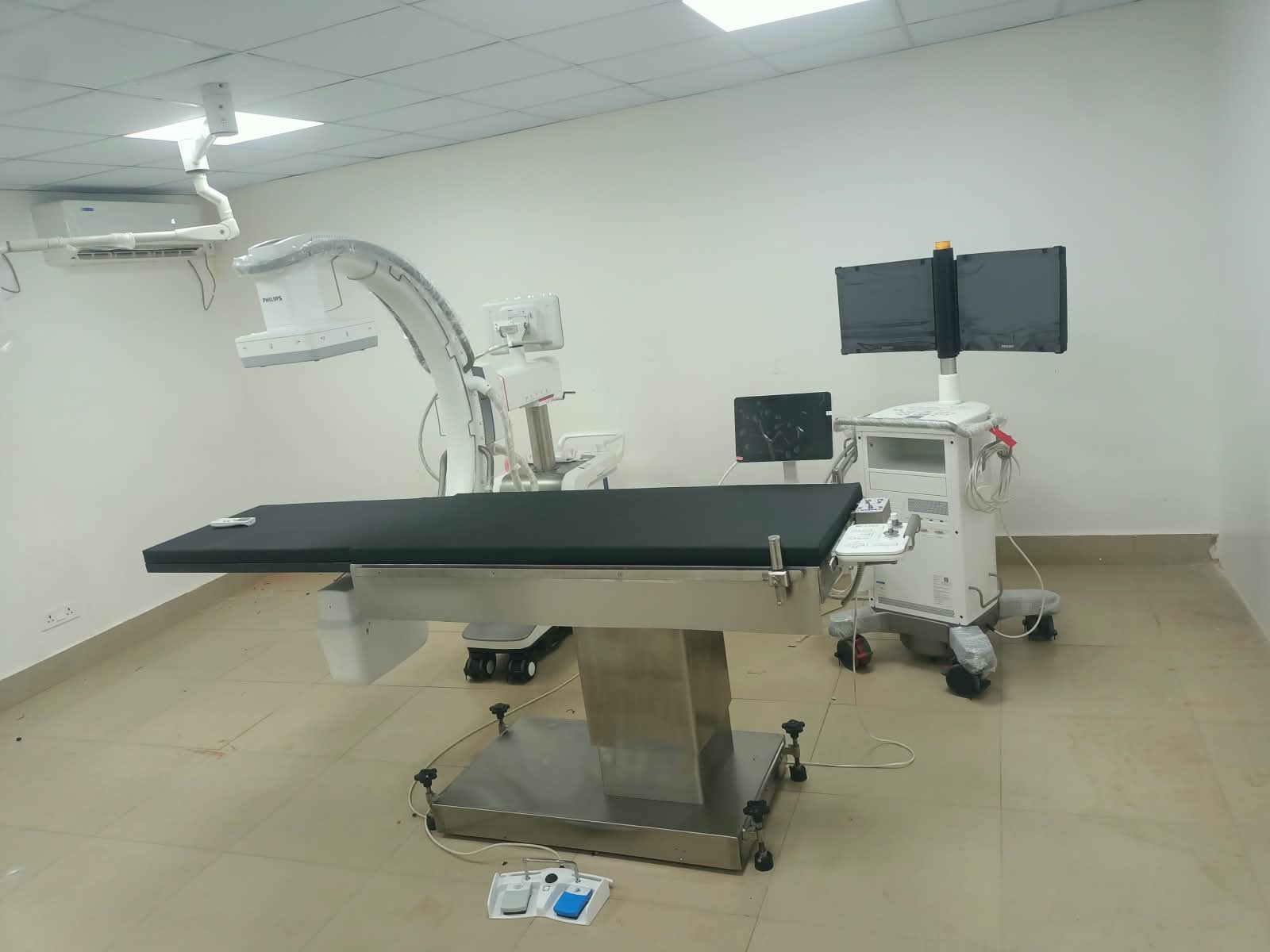

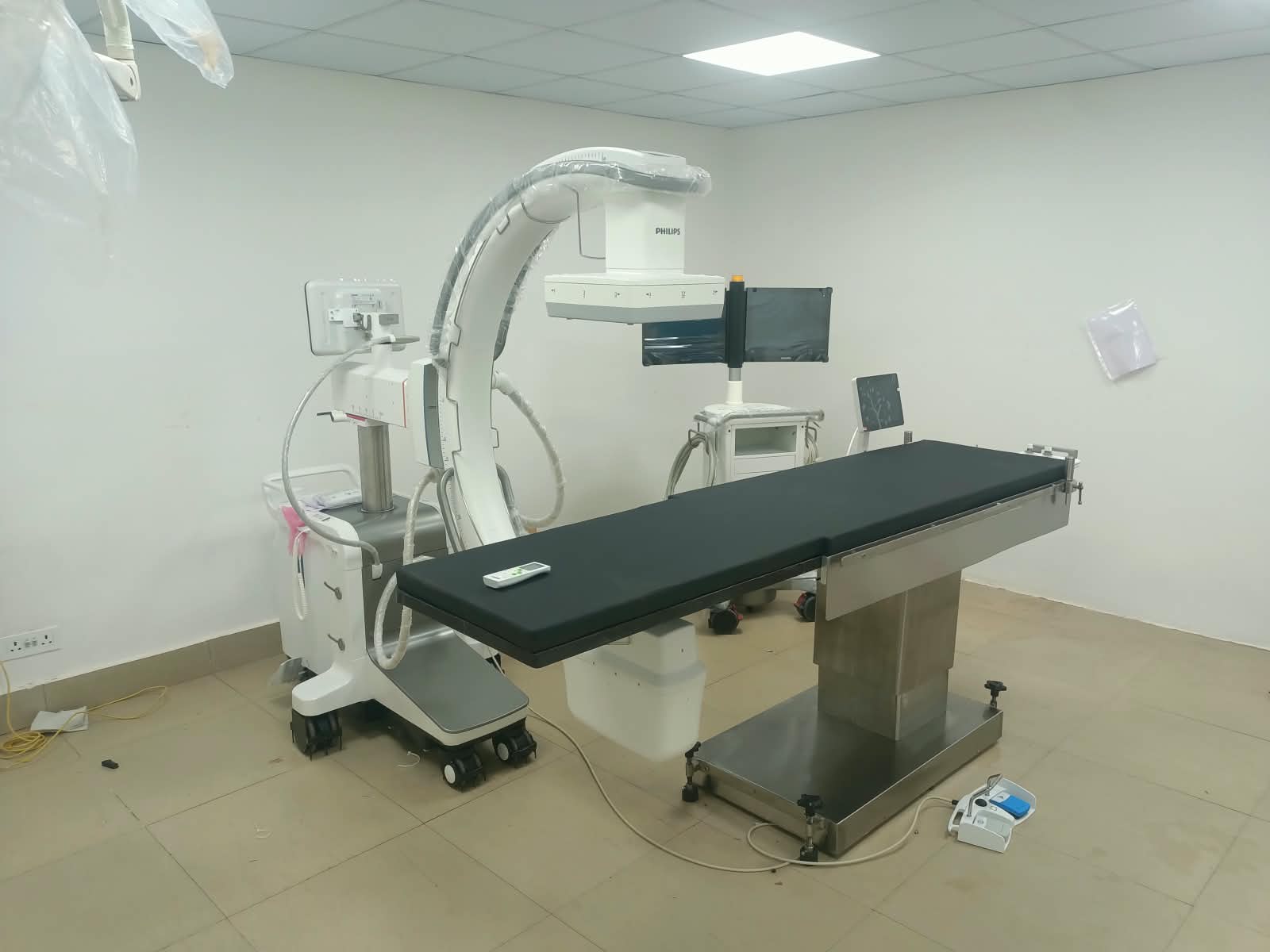

Neway Catheterization Table
Carbon-Fiber Radiolucent Tabletop | Advanced Positioning | Precise Manual Control
The Neway Catheterization Table is engineered for cardiovascular, electrophysiology, interventional radiology, and endovascular procedures where high-quality imaging, stable patient support, precise positioning, and efficient workflow are essential.
At the heart of the table is a 35 mm thick carbon-fiber sandwich tabletop, combining high structural rigidity with excellent radiolucency. The radiolucent construction provides a large, unobstructed imaging window while maintaining the strength required for demanding interventional procedures.
The table combines motorized positioning with smooth bilateral manual tabletop sliding, allowing OT staff to make fast, precise adjustments directly at the table.
Key Features
1. 35 mm Carbon-Fiber Sandwich Tabletop
The tabletop is manufactured using a 35 mm thick carbon-fiber sandwich construction, specifically suited to image-guided procedures.
- 35 mm thick carbon-fiber sandwich tabletop
- High structural rigidity with low tabletop weight
- Excellent radiolucency for fluoroscopic and C-arm imaging
- Designed to minimize imaging obstruction and artifacts
- Large imaging area for cardiovascular and interventional procedures
- Rigid, stable platform for patient support during procedures
- Durable construction designed for repeated clinical use
The carbon-fiber sandwich construction provides an effective combination of rigidity, strength, lightweight construction, and radiolucency, making it particularly suitable for catheterization and other fluoroscopy-guided procedures.
2. Ergonomic Patient Positioning
- Motorized height adjustment for convenient positioning during procedures.
- Ergonomically designed radiolucent tabletop with patient-supporting padding.
- Easy-to-clean, durable patient surface.
- High load-bearing capacity for a wide range of patients.
- Stable tabletop support during imaging and intervention.
3. Advanced Imaging Compatibility
The carbon-fiber tabletop is designed specifically to support image-guided procedures.
- Highly radiolucent 35 mm carbon-fiber sandwich tabletop
- Large imaging area suitable for fluoroscopy and C-arm-guided procedures.
- C-arm compatible design for flexible imaging access.
- Optimized tabletop geometry for access to the required anatomical regions.
- Reduced structural interference within the imaging field.
4. Bilateral Manual Sliding System
The table incorporates smooth manual sliding on both sides, providing OT staff with direct and precise control of tabletop positioning.
- 80 cm horizontal slide for extensive longitudinal positioning.
- 25 cm lateral slide for controlled transverse positioning.
- Smooth manual movement for rapid fine adjustment.
- Direct positioning control by OT staff without relying on motorized sliding.
- Tactile feedback for intuitive positioning.
- Smooth and controlled movement while maintaining tabletop stability.
The bilateral manual sliding system is particularly useful during image-guided procedures where small positional corrections may be required repeatedly throughout the procedure.
5. Motorized Precision Positioning
Motorized functions provide smooth and controlled adjustment of the primary table positions:
- Height adjustment
- Other available positioning functions according to configuration
An intuitive hand controller allows the operating team to adjust the table efficiently while maintaining focus on the procedure.
6. Stable and Robust Construction
The catheterization table is built around a rigid structural platform engineered for stability during demanding interventional procedures.
- High-strength structural construction
- Maximum patient load: up to 250 kg
- Rigid carbon-fiber tabletop
- Stable base and tabletop support
- Smooth and controlled positioning
- Emergency stop function for powered movement
7. Integrated Accessory System
Integrated accessory rails allow the table to be configured according to procedural requirements.
The system can accommodate compatible accessories for cardiovascular, interventional, and image-guided procedures.
Technical Specifications
| Parameter | Specification |
|---|---|
| Table Length | 240 cm |
| Table Width | 55 cm |
| Tabletop Construction | Carbon-Fiber Sandwich |
| Tabletop Thickness | 35 mm |
| Horizontal Slide | 80 cm |
| Lateral Slide | 25 cm |
| Imaging Area | 180 cm |
| Height Adjustment | 80–110 cm |
| Patient Weight Capacity | Up to 250 kg |
| Horizontal / Lateral Sliding | Manual, bilateral |
| Height / Major Positioning | Motorized |
| Power Supply | 110/220 V AC, 50/60 Hz |
| Imaging Compatibility | C-arm / Fluoroscopy |
Applications
The Neway Catheterization Table is suitable for:
- Cardiac catheterization
- Coronary angiography
- Electrophysiology (EP) procedures
- Interventional cardiology
- Interventional radiology
- Endovascular procedures
- Vascular interventions
- Fluoroscopy-guided procedures
Designed for the Catheterization Laboratory
The Neway Catheterization Table combines carbon-fiber radiolucent construction, motorized positioning, and smooth bilateral manual sliding to provide clinical teams with precise and practical control during image-guided procedures.
The 35 mm carbon-fiber sandwich tabletop provides the structural platform required for patient support while maintaining a highly radiolucent imaging path.
Motorized positioning provides convenient primary adjustment, while the bilateral manual sliding mechanism allows OT staff to perform rapid and precise fine positioning directly at the table.
This combination is designed around the practical workflow of modern catheterization and interventional procedures.
Neway — Precision Engineering for Medical Technology
Neway develops and manufactures medical equipment with a focus on mechanical reliability, functional design, serviceability, and practical clinical requirements.
The catheterization table is manufactured with attention to structural rigidity, radiolucency, smooth movement, imaging access, and long-term operational reliability.
Warranty & Technical Support:
Neway provides product warranty and technical support, with service assistance available for installation, operation, maintenance, and troubleshooting.
